Technical Data

Wall Thicknesses

The standard thickness of rammed earth walls is generally 300mm. In instances where niches and recesses are required for fireplaces, heater boxes etc. walls can be constructed to alternative thickness as required by the project.

The minimum structural thickness for load-bearing earth wall is 250mm. And, for a non-load bearing walls is 200mm. Below is a table detailing the minimum thickness and insulation – R ratings for rammed earth, structural and non-structural. These are minimums to achieve R ratings. Depending on wall heights and individual project specifications, walls can be built thicker.

Table showing Rammed Earth wall Thicknesses and insulation R ratings.

Corner Chamfer Details
The standard chamfer is 450/50mm at:

  • Wall ends
  • Window openings
  • Door openings
  • Windowsills

Electrical and Plumbing

Electrical conduits and wall boxes are rammed into the wall at locations where power-points and light switches are required.

Conduits are also placed into the wall to allow plumbing pipes to be inserted where required. Where an area is to be tiled over or hidden by joinery, plumbing pipes and electrical conduits can be chased into the wall.

Openings

To construct rammed earth over doors or windows, we utilise engineered T-Bar lintels. These are placed over the opening during ramming to support the earth above.

Where recesses are required in walls, formers/block-outs are placed into the formwork set up and soil is placed and compacted around them to produce the required opening or shape in the wall.

Roof Tie-Down System

In the top 600mm of the wall metal rods are inserted during compacting to provide a tie-down system for a timber top plate, this is for securing the roofing structure (see below).

Roof Tie-Down System for Rammed Earth Walls
Note. The above contents pertain to walls built by Rammed Earth Enterprises Pty Ltd.
These diagrams have been cropped and are not to scale.

Structural Steel

  • T-Bar Lintels: The horizontal of the T-Bar should not exceed 200mm (width) in a 300mm thick wall.
  • Structural Columns: Placement of structural columns should be avoided in rammed earth walls where possible. This reduces the risk of walls developing fractures where columns are embedded.

General Details

Damp-proofing and bonding of Rammed Earth to the Slab

Bondall Silasec slurry is applied to the slab where the wall is to be built, prior to the first earth compaction layer.

Concrete slabs and footings are designed for articulated full masonry as per
NCC 3.2.5.

No slab rebate is required.

Standard detail of Rammed Earth to Eave Finishes (trusses, top plate, soffit, flashings etc.) detailed in the diagram below.

Nominal Eave Detail Diagram
Note. The above contents pertain to walls built by Rammed Earth Enterprises Pty Ltd.
These diagrams have been cropped and are not to scale.

Fixing Details

  • Skirting: Construction adhesive and 40mm fixing brads are used
  • Cornice: As per standard cornice fixing methods. The cornice line should be taped prior to installation.
    Note. Extreme care is required from the plasterers to ensure cornice cement is not transferred to the visible wall area.

Control/Articulation Joints

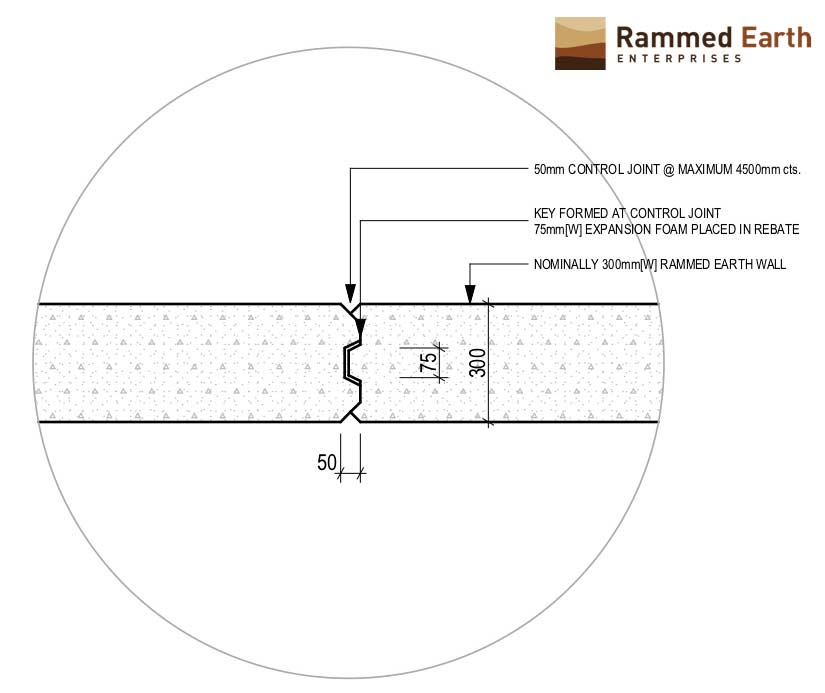

Maximum span between control/articulation joints is 4500mm. See Diagram below for information regarding control joint detail.

Articulation Join Detail for Rammed Earth Walls
Note. The above contents pertain to walls built by Rammed Earth Enterprises Pty Ltd.
These diagrams have been cropped and are not to scale.

Permeability Information

Our rammed earth walls incorporate a waterproofing additive. We combine this with the raw materials during the mixing process, this ensures the walls are waterproof. However, a 75mm exposed slab edge should be maintained above finished paving/garden level to protect against moisture ingress (rising damp) into the walls.

A clear solvent based acrylic polymer sealer is applied to all walls for finishing. This seals the walls while maintaining vapour transfer in and out of the rammed earth.

Fire rating

Rammed earth walls are suitable for construction as an external wall up to BAL FZ and have a four-hour fire rating.
Refer to BAL Australian Standards (AS 3959) Construction of buildings in bushfire-prone areas.

Energy Efficiency, Thermal insulation/thermal bridging

There are two methods to ensure rammed earth walls meet the energy standards required to obtain a building permit.

1. Standard Energy Rating System

  • 300mm walls uninsulated R0.7: utilised for any load-bearing internal walls, external walls of a non-habitable room or landscaping walls.
  • 400mm walls insulated R2.5: utilised for any external load-bearing walls.
  • 450mm walls insulated R3.5: utilised for any external load-bearing walls.

2. Performance Solution Report

  • 300mm rammed earth walls (internal load bearing, internal non-load bearing, external load bearing or landscaping etc.)

Australian Standards

We construct our walls in accordance with all relevant Australian Standards.

Our walls also comply with best practice guidelines in Standards Australia International (2001) The Australian Earth Building Handbook HB195.

Nominal Concrete Footing Detail
Note. The above contents pertain to walls built by Rammed Earth Enterprises Pty Ltd.
These diagrams have been cropped and are not to scale.
Slider
Slider

About Rammed Earth

Rammed earth is a highly sustainable wall medium. Rammed Earth is architecturally unique, with high thermal properties and aesthetic appeal.

There is great versatility when it comes to designing with Rammed Earth.
We can build:

  • Stabilised rammed earth
  • Insulated rammed earth
  • Internal thermal mass walls
  • Curved walls
  • Portholes and Niches
  • Landscaping walls
  • Fireplace feature walls
  • Raked walls – straight and curved
  • A variety of wall tone options

Sustainable Benefits

Rammed earth’s sustainable benefits may be of interest to your clients:

Thermal Mass

Thermal Mass is the ability for the walls to absorb, store and release heat. When combined with efficient solar passive design, it can moderate the internal temperatures of a building.

In Summer, exposed thermal mass absorbs temperature gains through the day. This can be from external heat, the occupants and any electrical lighting/equipment. The mass releases stored cool while absorbing the heat. This acts to reduce temperature rises within the building. By the end of the day, the building mass has warmed. As external temperatures decrease, the mass can cool down. Through effective ventilation, the walls can absorb the cooler air and release the absorbed heat back out.

In Winter, the thermal mass stores heat from direct sunlight. The mass absorbs warmth from increases in ambient air temperature. Warmth is slowly released when external air temperatures reduce at the end of the day. This helps keep the building warm.

These thermal exchanges increases comfort, and reduces energy costs.

You can read more on the thermal properties of Rammed Earth here.

Insulated Rammed Earth

We can construct thermally broken, insulated external rammed earth walls (not bridged). We can provide insulation in rammed earth walls of R 2.5 – 3.5. Insulation in rammed earth is required in external walls. Unless a performance solution is being utilised, or the walls are in non-habitable spaces or are landscaping walls.
For more technical information on insulation and rammed earth walls, download the technical data PDF above.

Embodied Energy

Rammed Earth has sustained longevity. It also requires less embodied energy than many other wall mediums. The same amount of embodied energy that produces 1m2 of fired bricks produces 300m2 of Rammed Earth.

Benefits

There are a great number of benefits to rammed earth, including:

  • Visually unique; with contemporary natural textures and tones
  • Environmental, Health and Financial
  • Excellent soundproofing
  • Acoustic properties
  • Load bearing
  • Termite resistance
  • Fire rating up to 4 hours (see technical information PDF above for more information on Rammed Earth and fire ratings)

You can read more information about each of these benefits here.

You can use Rammed Earth for

Rammed earth walls are perfect for internal, external, landscaping and feature walls.

Quoting on plans

To receive your quote back as soon as possible, it is important that plans include:

  • Fully dimensioned floor plan scaled at 1:100
  • Elevations, including wall heights
  • Sectional drawings
  • Electrical layouts
  • Sizes of doors and windows designed in the Rammed Earth Walls (if any)
  • Any other structural details or important information about the Rammed Earth walls
